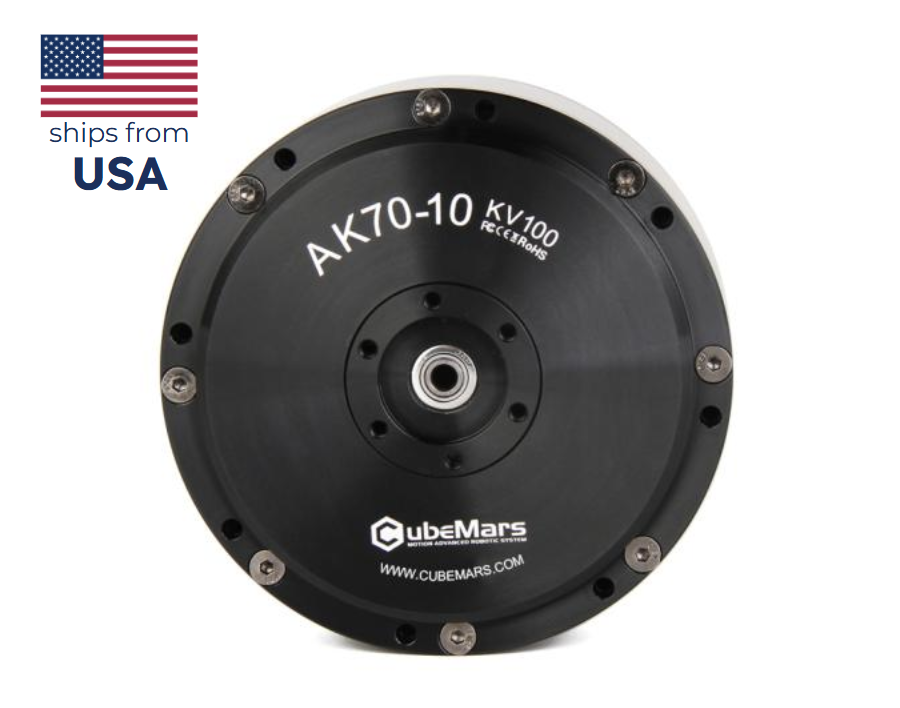

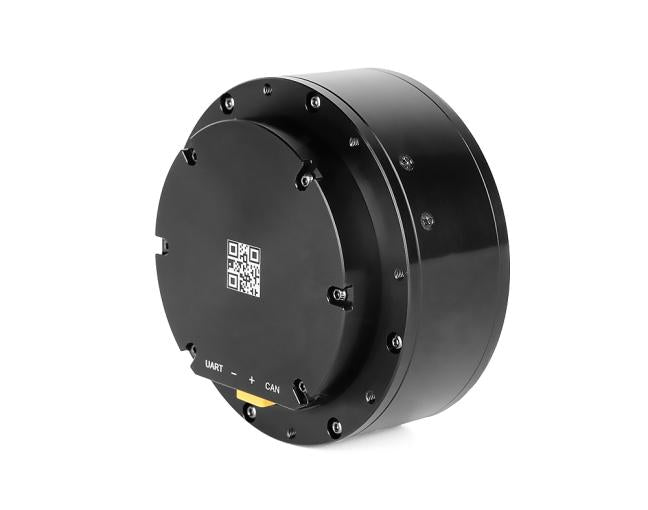

CubeMars AK70-10 KV100
No Driver
$526.00
Sale price
$526.00
Regular price
Skip to product information
CubeMars AK70-10 KV100
$526.00
Sale price
$526.00
Regular price
The CubeMars AK70-10 KV100 integrates a brushless DC motor, 10:1 planetary gearbox, driver, and cross-roller bearing for high impact resistance. Delivers 24.8 Nm peak torque at 480 rpm.
| Spec | Value |
|---|---|
| Peak Torque | 24.8 Nm |
| Rated Torque | 8.3 Nm |
| No-load Speed | 480 rpm |
| Weight | 521 g |

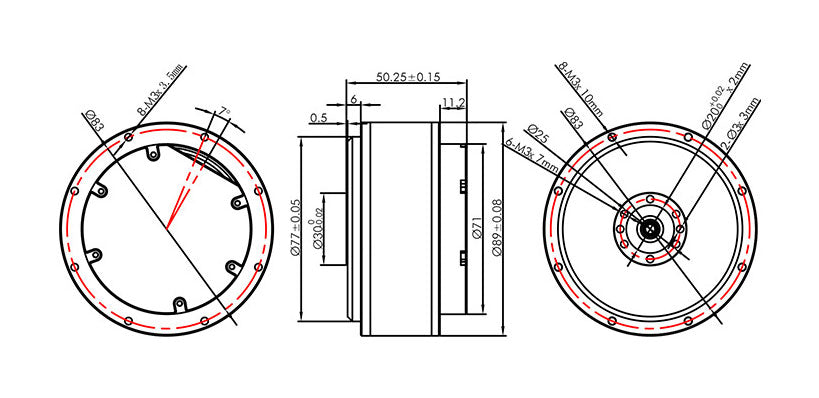

| Dimensions | Ф89 × 50.25mm |
| Gear Ratio | 10:1 |
| Rated Voltage | 48V |
| KV | 100 rpm/V |
| Bearing | Cross-Roller |
| Torque Density | 47.6 Nm/kg |
