CubeMars Driver Board for AK, AKE, and AKA Series Actuators
$85.00
Sale price
$85.00
Regular price

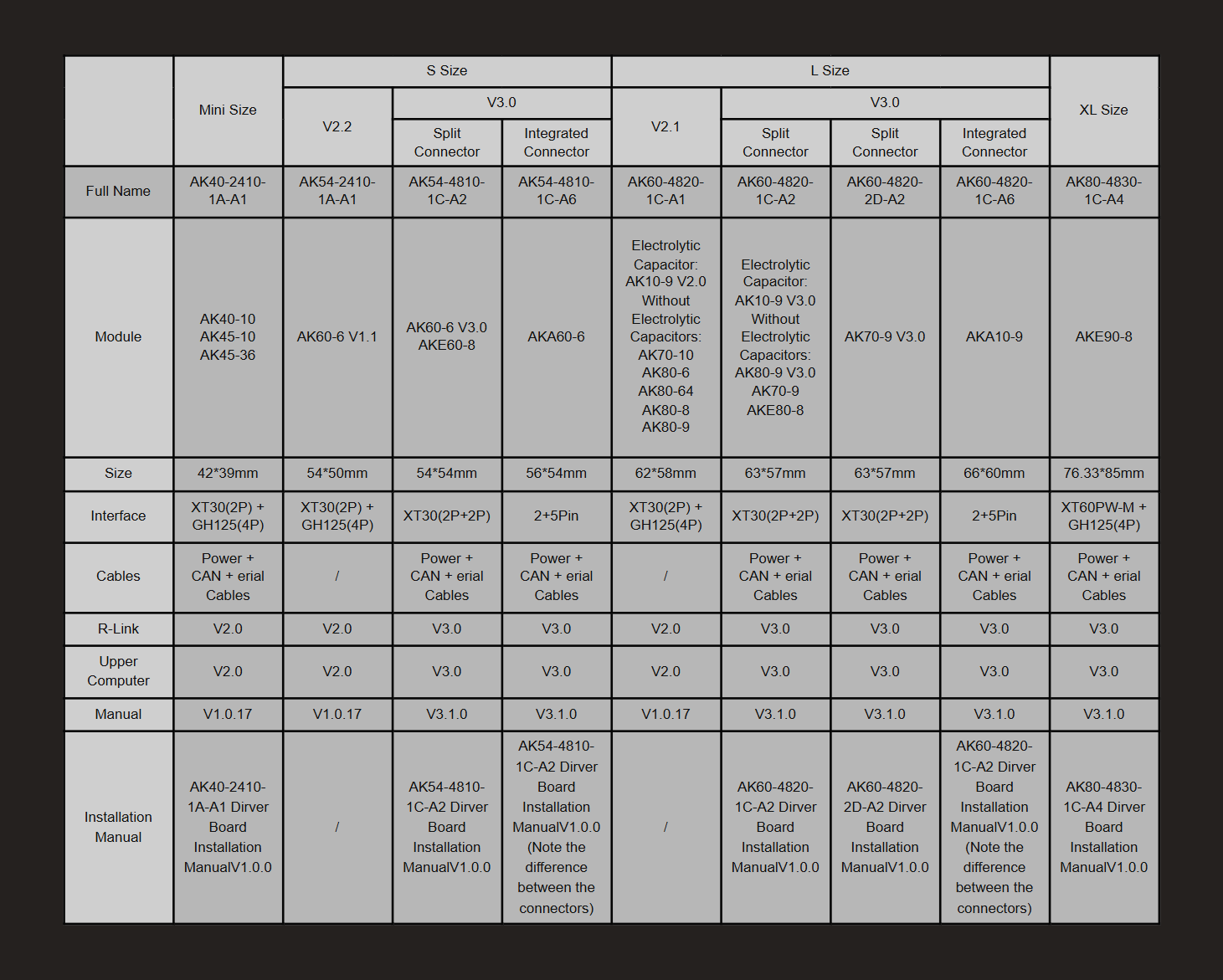

See table for actuator model compatibility.

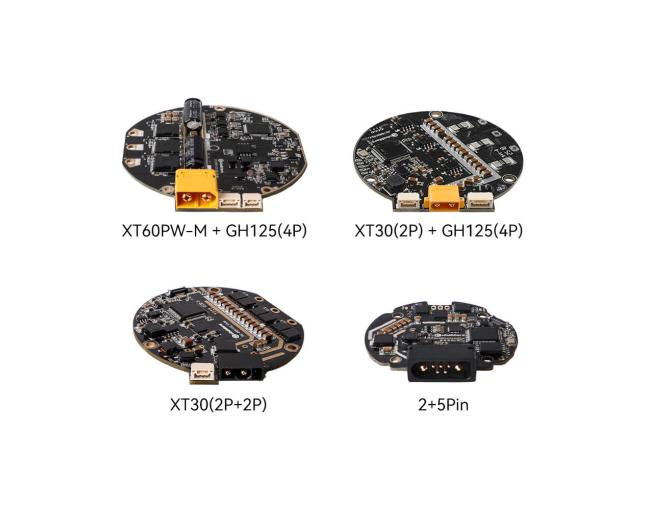

The CubeMars Driver Board is a high-performance motor controller specifically designed for the AK, AKA, and AKE series of robotic actuators.
It features an onboard 14–21 bit single-turn absolute encoder and a temperature sensor, providing precise feedback for closed-loop control while ensuring operational safety through integrated over-current and over-temperature protection.
The board supports dual communication interfaces—CAN bus and UART serial—and works seamlessly with CubeMars Tool software to enable real-time parameter tuning, firmware updates, and flexible control modes including position, velocity, torque.
• Compatible with CubeMars AK, AKA, and AKE series motors
• Supports both servo mode and motion control mode
• Enables single-loop control (current, speed, or position) and multi-loop cascaded control (e.g., position + velocity)
• Onboard high-resolution absolute encoder (14–21 bit single-turn)
• Integrated temperature sensor with built-in overload and over-temperature protection
