CubeMars AKE60-8 KV80
$288.00
Sale price
$288.00
Regular price
Skip to product information
CubeMars AKE60-8 KV80
$288.00
Sale price
$288.00
Regular price

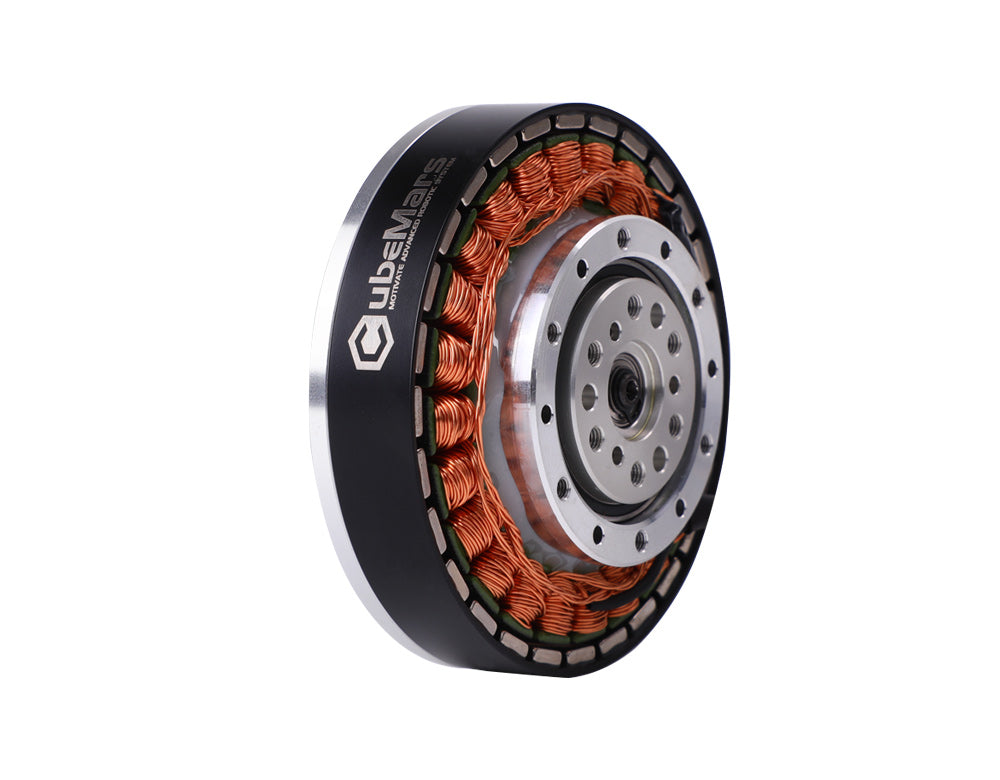

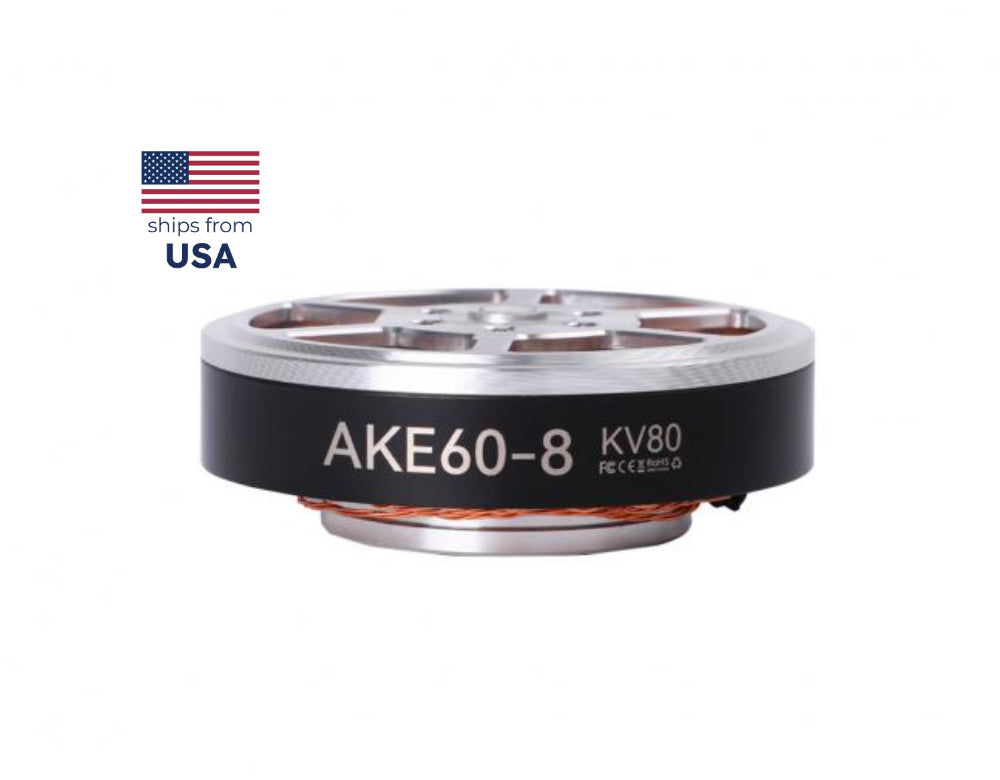

The CubeMars AKE60-8 KV80 is a quasi-direct drive actuator with 8:1 planetary gearbox delivering 12.5 Nm peak torque in an ultra-thin Ф69×25mm form factor. 46 Nm/kg torque density with bi-directional mounting for exoskeletons and high-performance robotics.

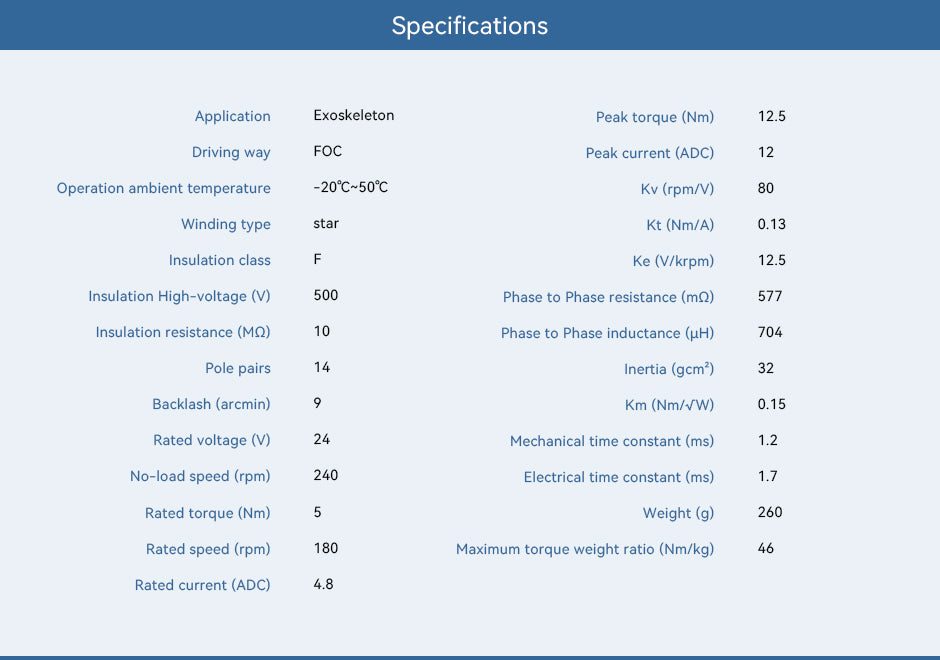

| Spec | Value |
|---|---|
| Peak Torque | 12.5 Nm |
| Rated Torque | 5 Nm |
| Rated Speed | 180 rpm |
| Weight | 260 g |

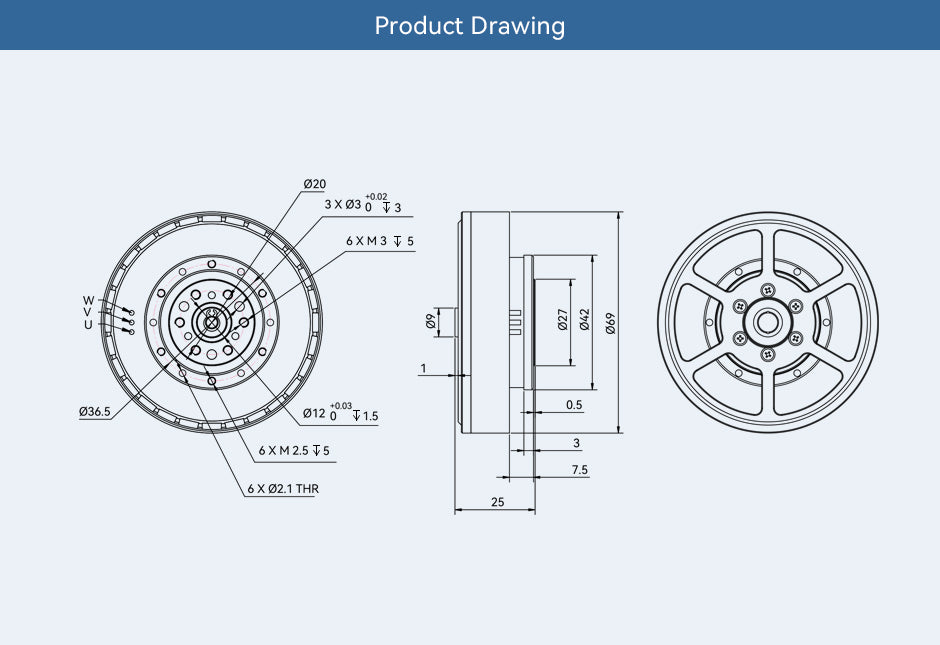

| Dimensions | Ф69 × 25mm |
| Gear Ratio | 8:1 |
| Rated Voltage | 48V |
| KV | 80 rpm/V |
| Torque Density | 46 Nm/kg |
| Control | FOC |
