CubeMars RI50 KV100 Frameless Inrunner Torque Motor (with Hall Sensor)
$87.00
Sale price
$87.00
Regular price

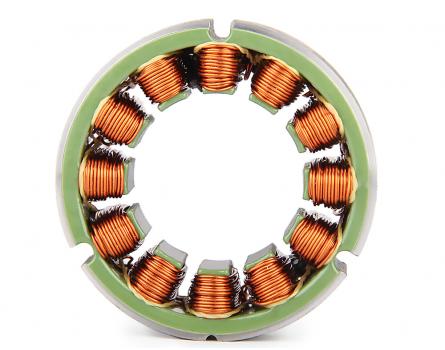

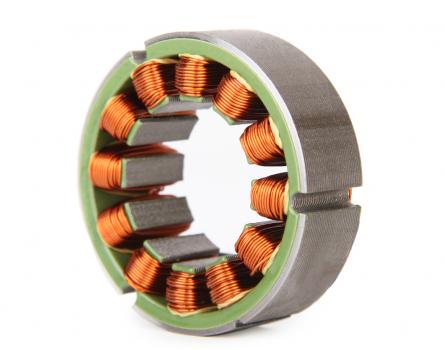

The RI50 KV100 is an inner-rotor (inrunner) frameless torque motor from the CubeMars RI series. Shipped as a matched stator and rotor with no housing or end caps, it drops into tight robotic joints and rotary stages where you want to design your own mounting, bearings and encoder interface. It pairs high torque density with very low cogging for smooth, precise low-speed motion.
Typical uses include robotic and cobot arm joints, exoskeletons, quadruped and humanoid robots, gimbals, and other space-constrained direct-drive mechanisms.
Specifications
| KV rating | 100 rpm/V |
| Rated voltage | 24 / 36 / 48 V |
| Rated torque | 0.58 N·m |
| Peak torque | 1.67 N·m |
| No-load speed | 4008 rpm |
| Rated speed | 2600 rpm |
| Rated current | 4.8 A |
| Peak current | 14.8 A |
| Rated power | 66 W |
| Pole pairs | 7 |
| Phase-to-phase resistance | 1420 mΩ |
| Phase-to-phase inductance | 1500 µH |
| Torque constant (Kt) | 0.120 N·m/A |
| Dimensions (Ø × L) | Ф54 × 27 mm |
| Hollow-shaft bore | 22 mm |
| Weight | 180.8 g |

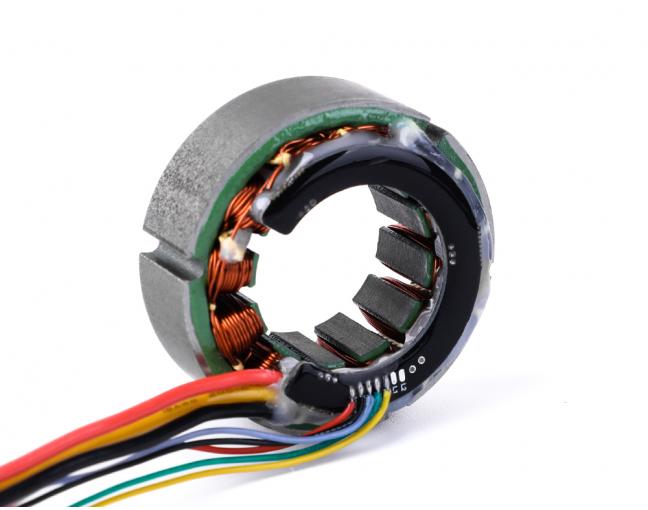

| Hall sensor | Yes |
| Drive method | FOC |

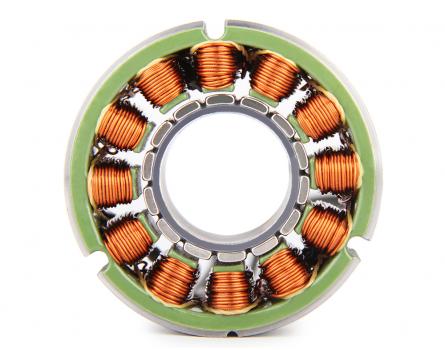

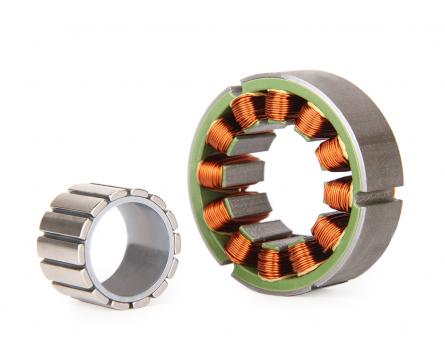

Ships as a frameless stator + rotor set. Sold by Pendulum Robotics, an authorized reseller of CubeMars motors.
