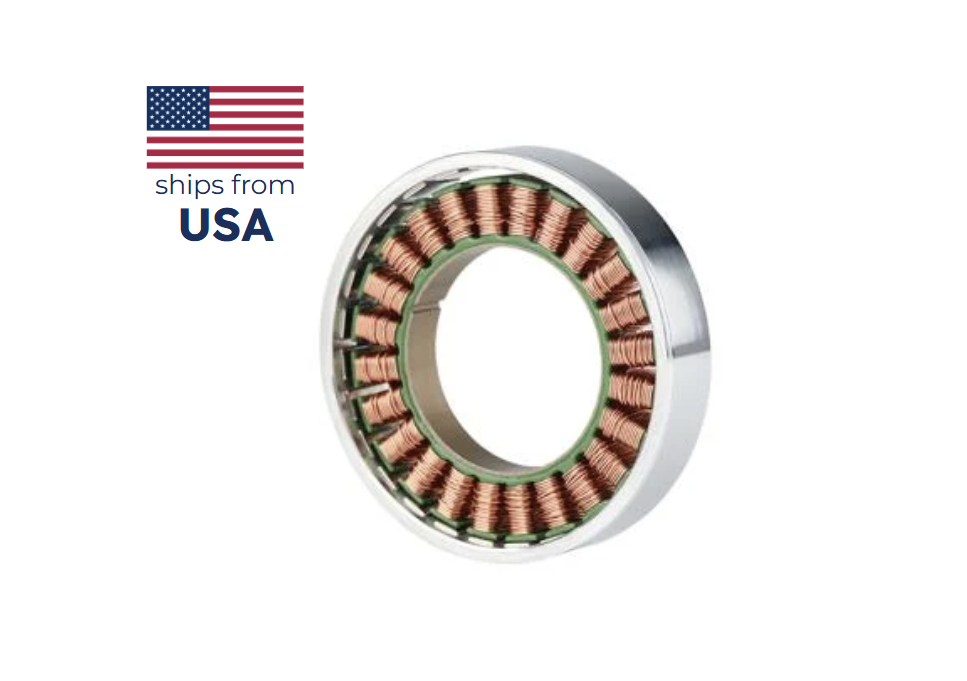

CubeMars RO55 Lite KV108 Frameless Outrunner Torque Motor (No Hall Sensor)
$89.00
Sale price
$89.00
Regular price
Skip to product information
CubeMars RO55 Lite KV108 Frameless Outrunner Torque Motor (No Hall Sensor)
$89.00
Sale price
$89.00
Regular price

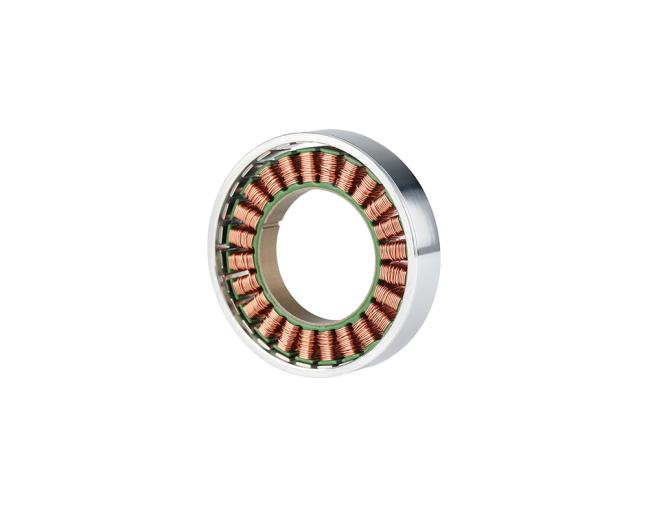

The RO50 KV108 Lite is an outer-rotor (outrunner) frameless torque motor from the CubeMars RO series. Its large hollow bore lets you route cables or a drive shaft straight through the center, and the outrunner layout delivers high torque density with roughly 50% lower cogging than comparable motors for smooth, stable low-speed control.
Typical uses include robotic and cobot arm joints, exoskeletons, quadruped and humanoid robots, gimbals, and other space-constrained direct-drive mechanisms.
Specifications
| KV rating | 108 rpm/V |
| Rated voltage | 24 V |
| Rated torque | 0.3 N·m |
| Peak torque | 0.9 N·m |
| No-load speed | 2600 rpm |
| Rated speed | 2100 rpm |
| Rated current | 3.4 A |
| Rated power | 66 W |
| Pole pairs | 14 |
| Phase-to-phase resistance | 1035 mΩ |
| Phase-to-phase inductance | 460 µH |
| Torque constant (Kt) | 0.088 N·m/A |
| Dimensions (Ø × L) | Ф61.7 × 14.5 mm |
| Weight | 105 g |
| Hall sensor | No |
| Drive method | FOC |

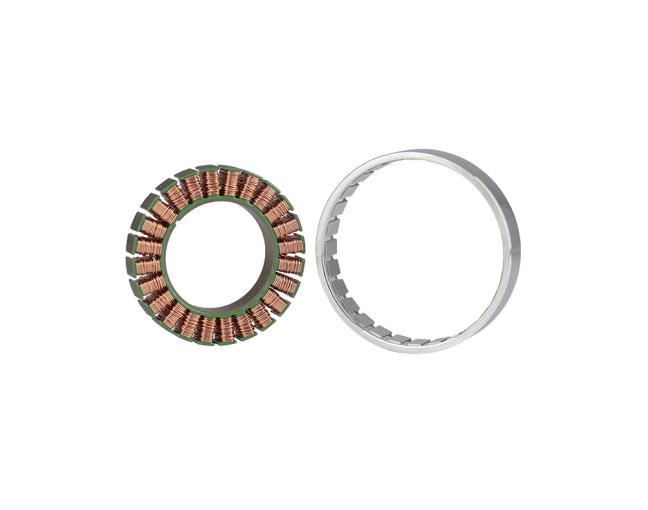

Ships as a frameless stator + rotor set. Sold by Pendulum Robotics, an authorized reseller of CubeMars motors.
