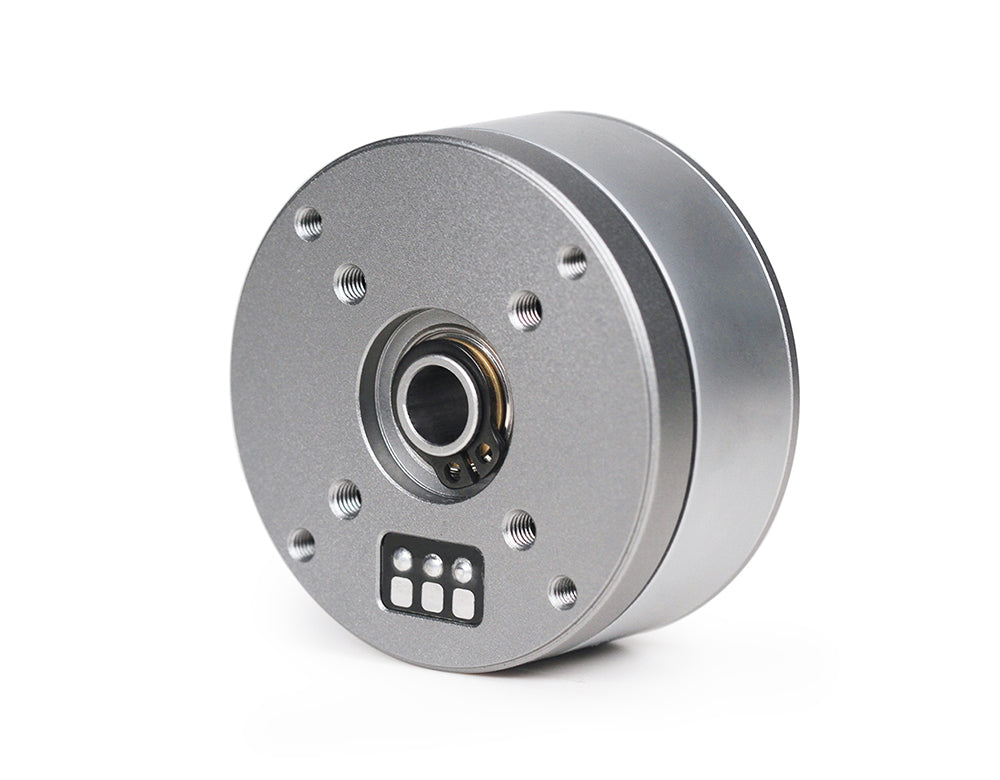

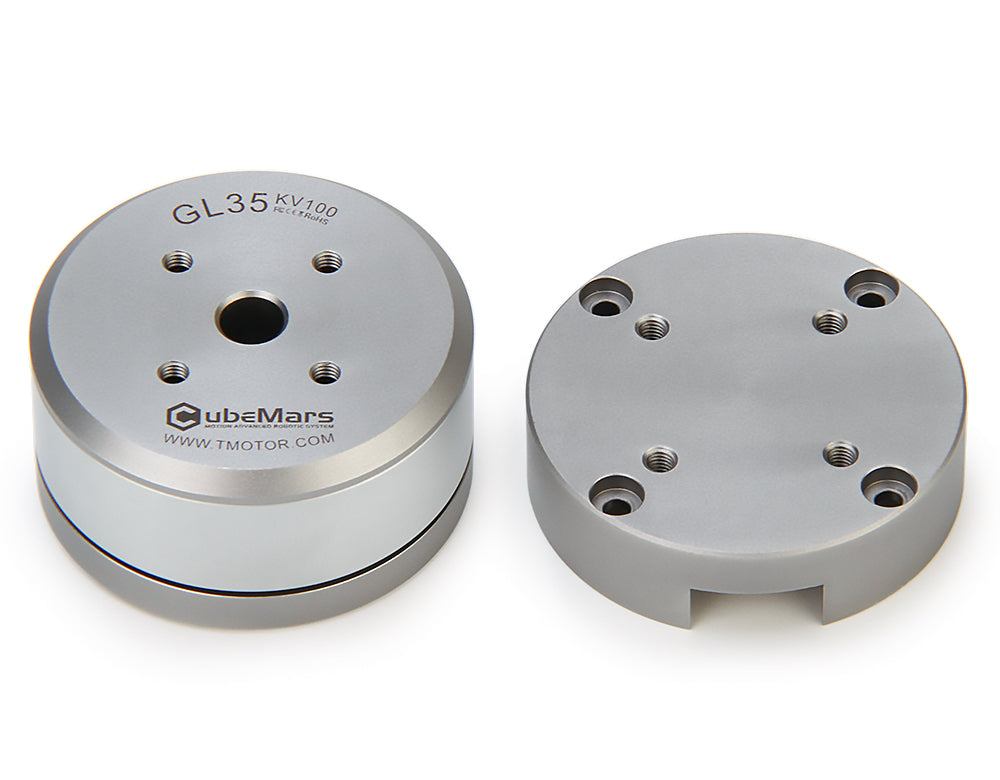

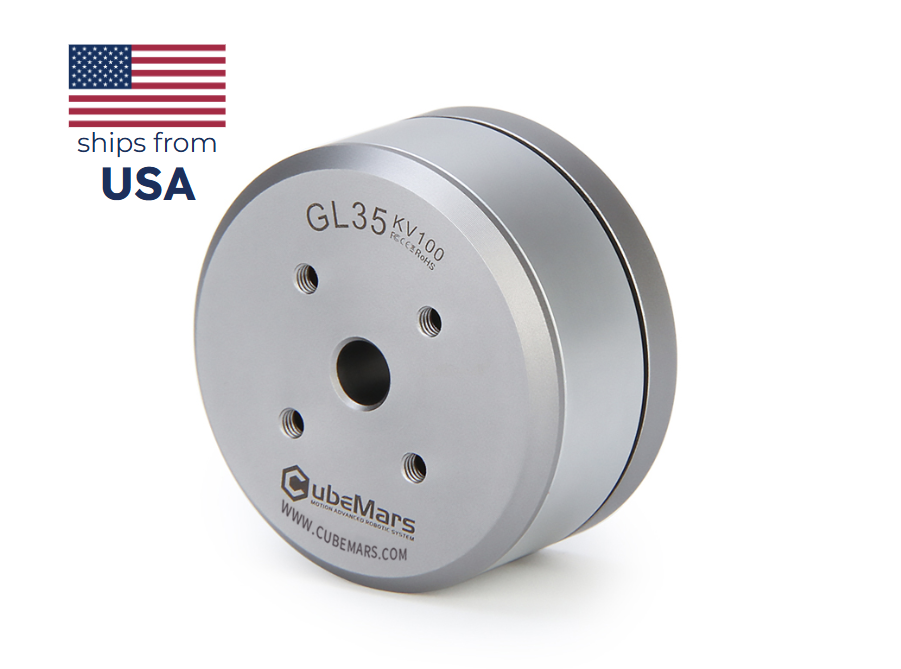

The CubeMars GL35 KV100 is a compact 90g brushless gimbal motor with a 6mm hollow shaft. Delivers 0.46 Nm peak torque at 1320 rpm with low cogging torque and smooth, precise control. IP45 rated, AlexMos compatible.
| Spec | Value |
|---|---|
| Peak Torque | 0.46 Nm |
| Rated Torque | 0.15 Nm |
| No-load Speed | 1320 rpm |
| Weight | 90 g |

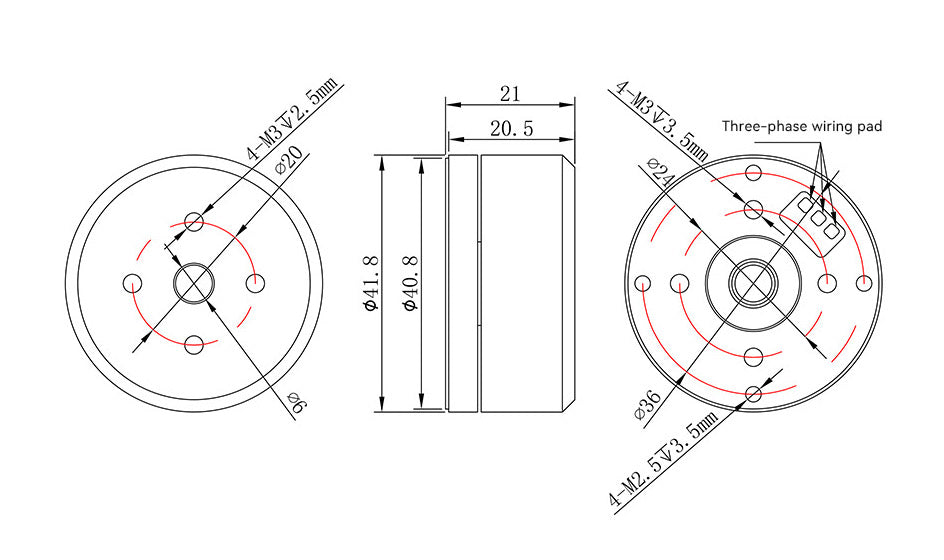

| Dimensions | Ф41.8 × 21mm |
| Hollow Shaft | 6mm |
| KV | 100 rpm/V |
| Rated Voltage | 16V |
| Protection | IP45 |
