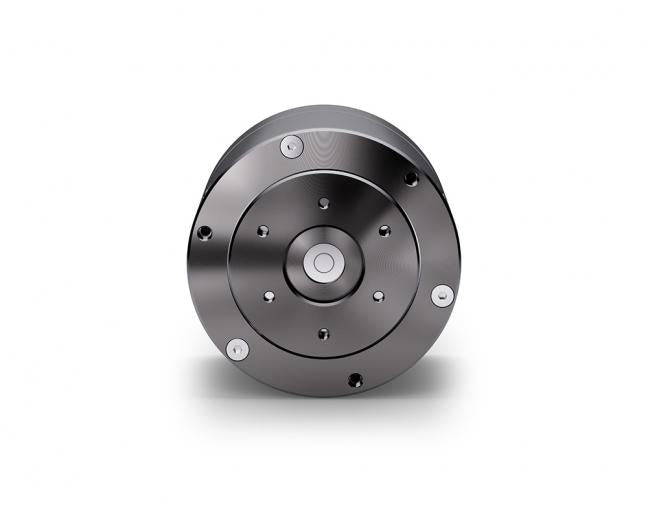

CubeMars AK45-10 KV75
No Driver
$158.00
Sale price
$158.00
Regular price
Skip to product information

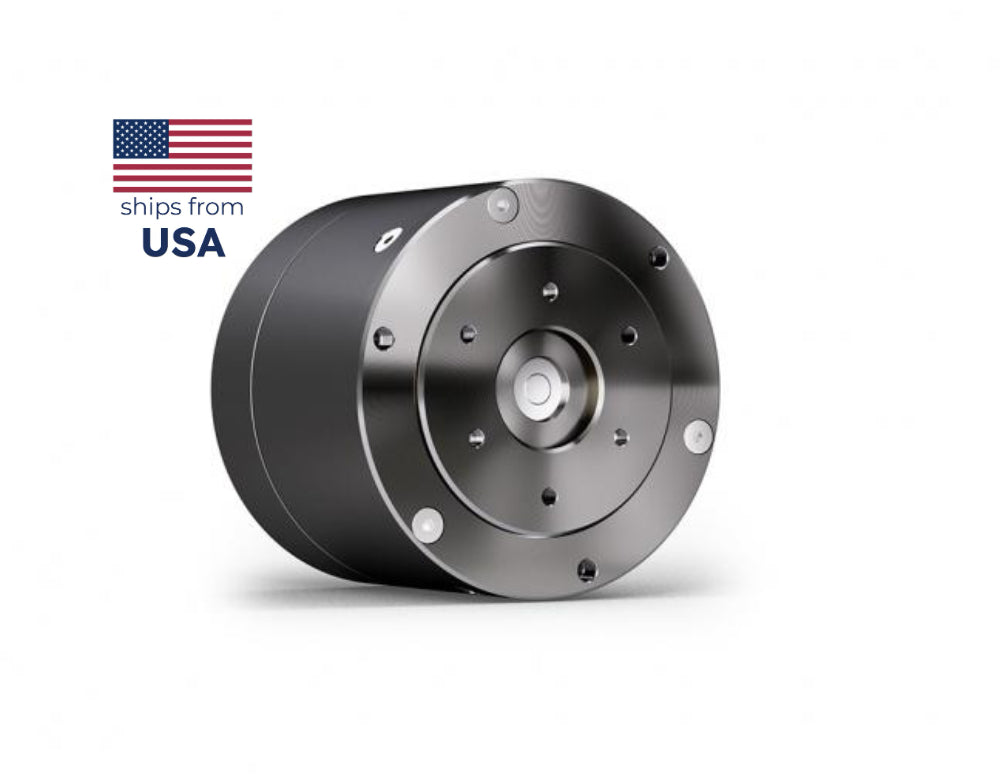

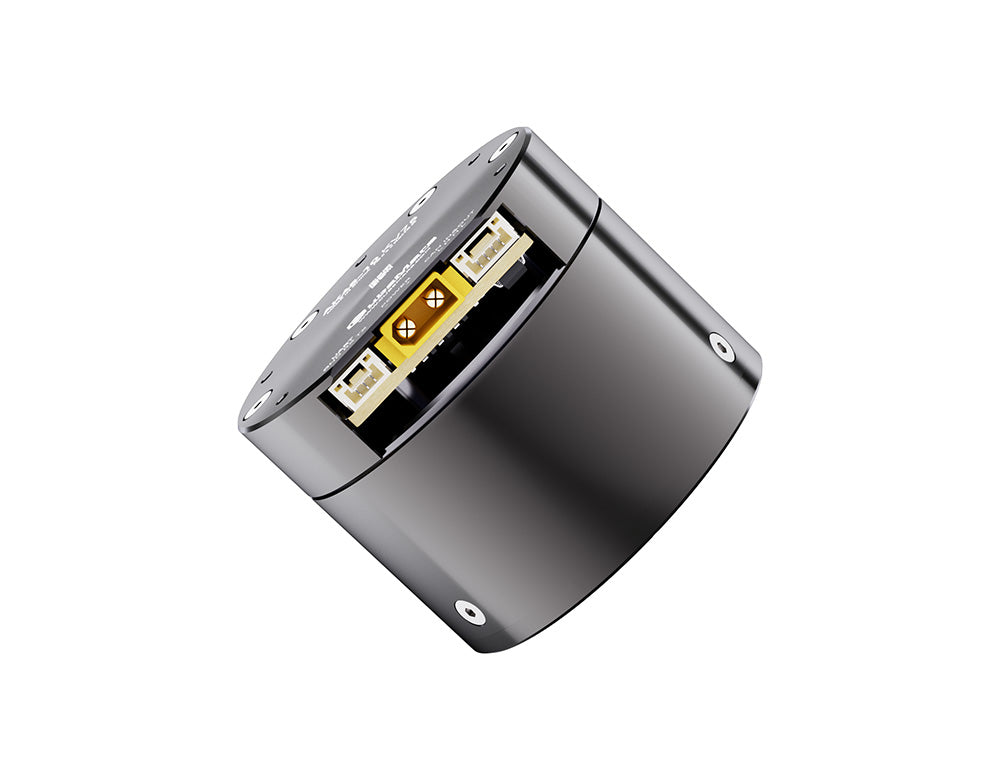

CubeMars AK45-10 KV75
$158.00
Sale price
$158.00
Regular price
The CubeMars AK45-10 KV75 is a lightweight, high-torque-density actuator delivering 7 Nm peak torque in a compact Ф53×43mm package with 14-bit magnetic encoder and FOC control.

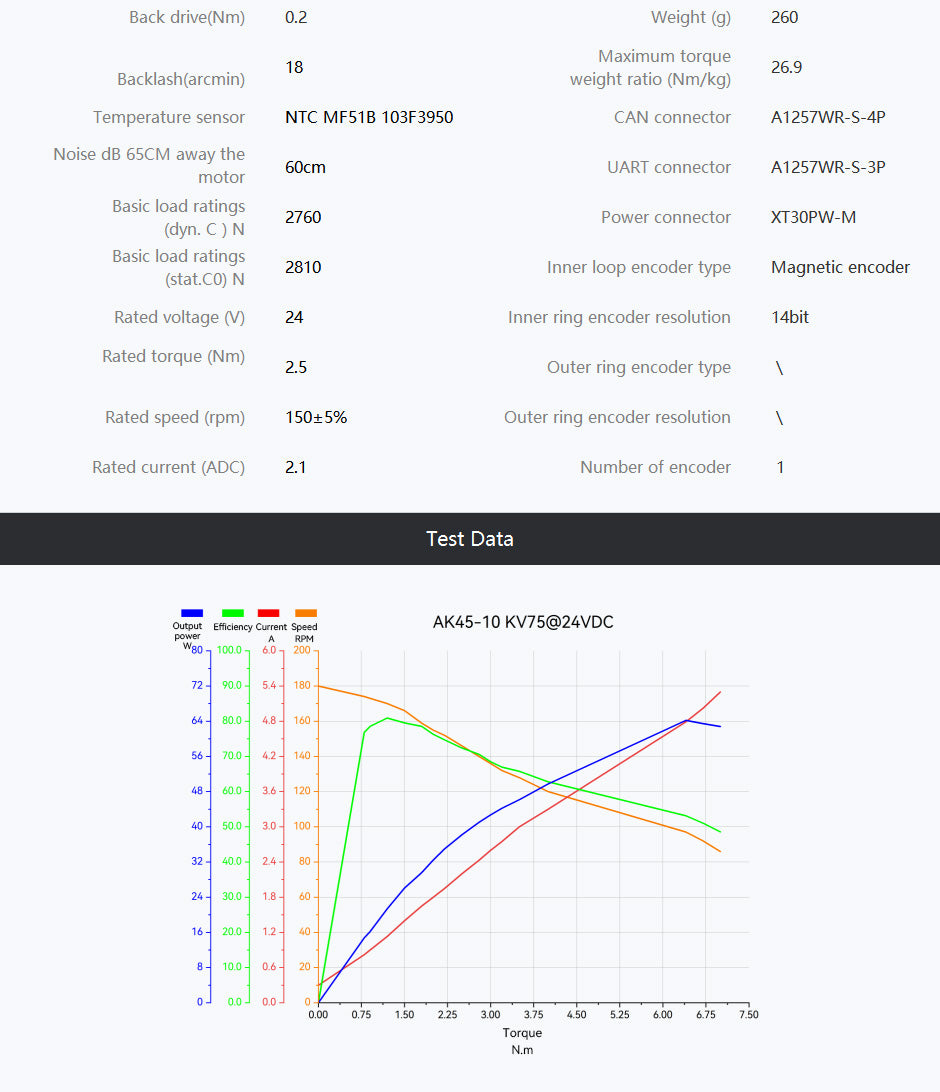

| Spec | Value |
|---|---|
| Peak Torque | 7 Nm |
| Rated Torque | 2.5 Nm |
| Rated Speed | 150 rpm |
| Weight | 260 g |

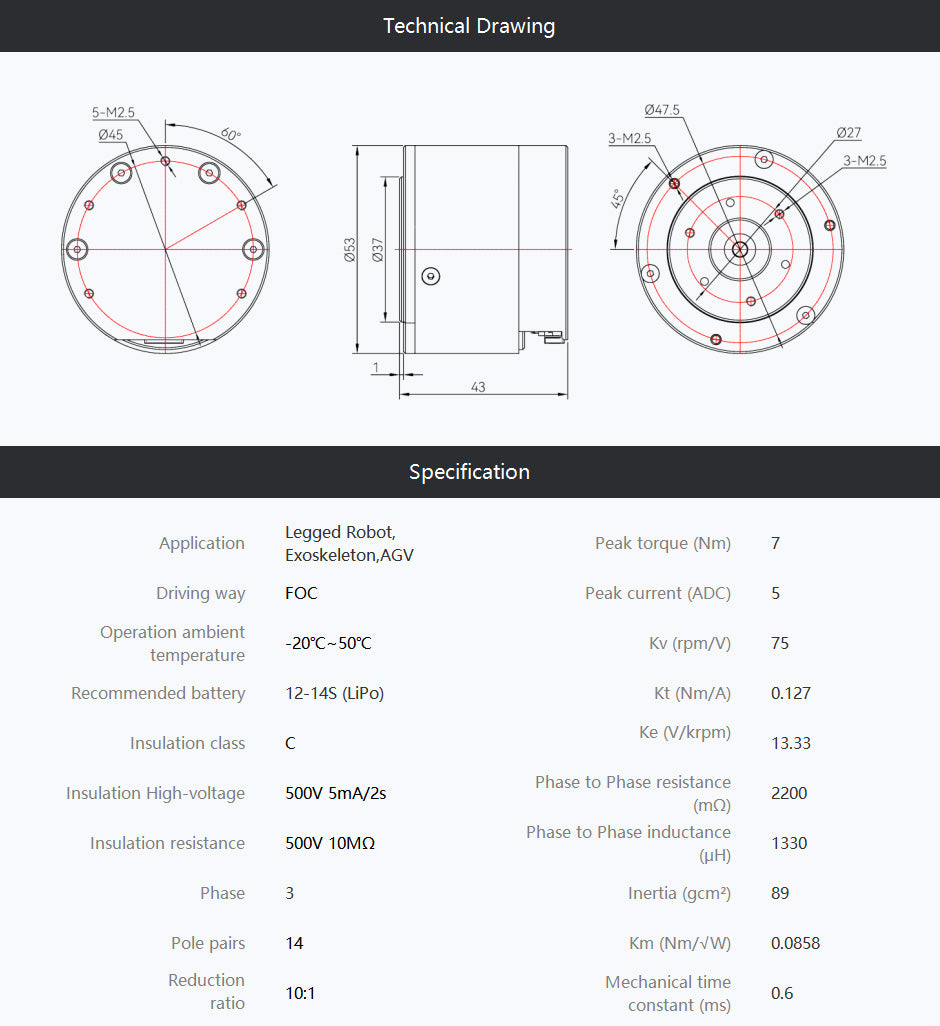

| Dimensions | Ф53 × 43mm |
| Gear Ratio | 10:1 |
| Rated Voltage | 24V |
| KV | 75 rpm/V |
| Encoder | 14-bit Magnetic |
| Torque Density | 26.9 Nm/kg |
