CubeMars AKH70-48 V1.0 KV41
$922.00
Sale price
$922.00
Regular price

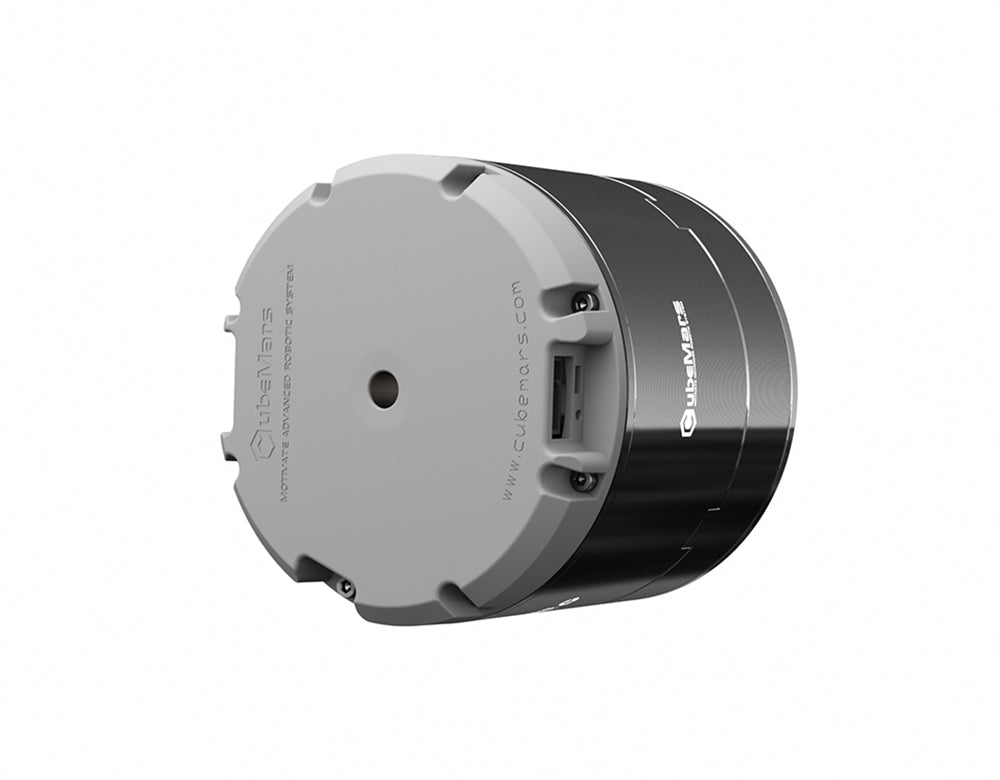

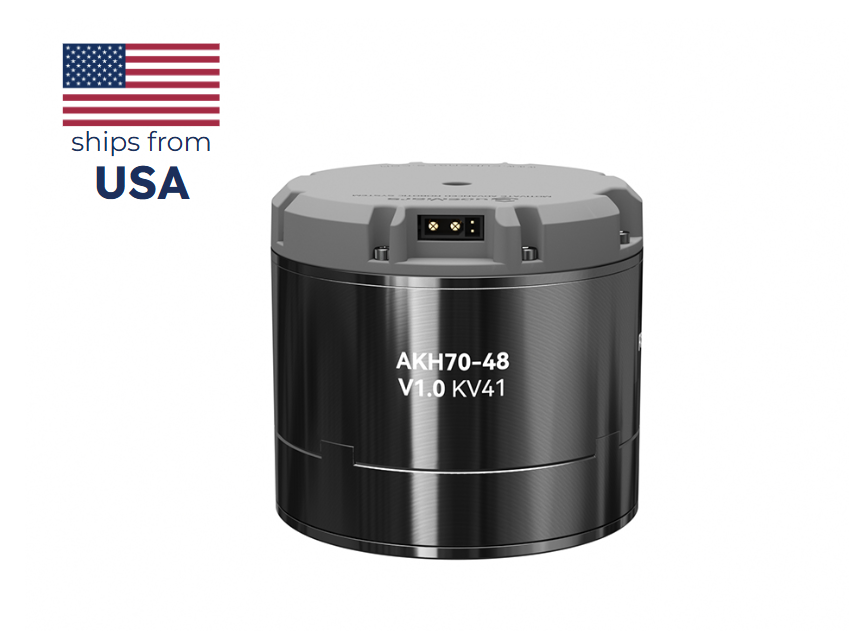

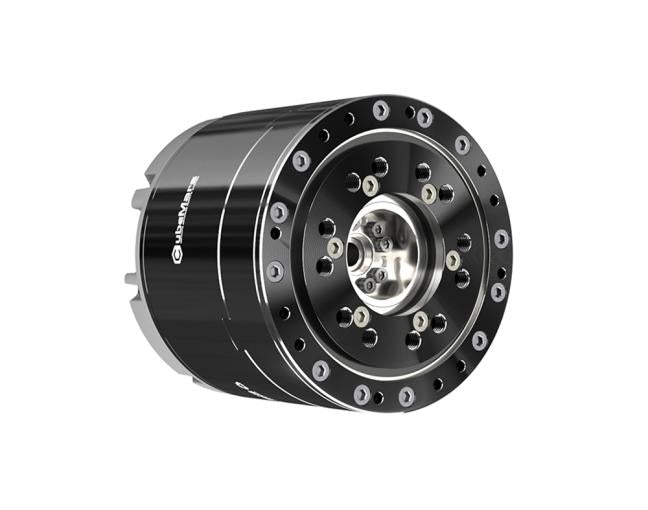

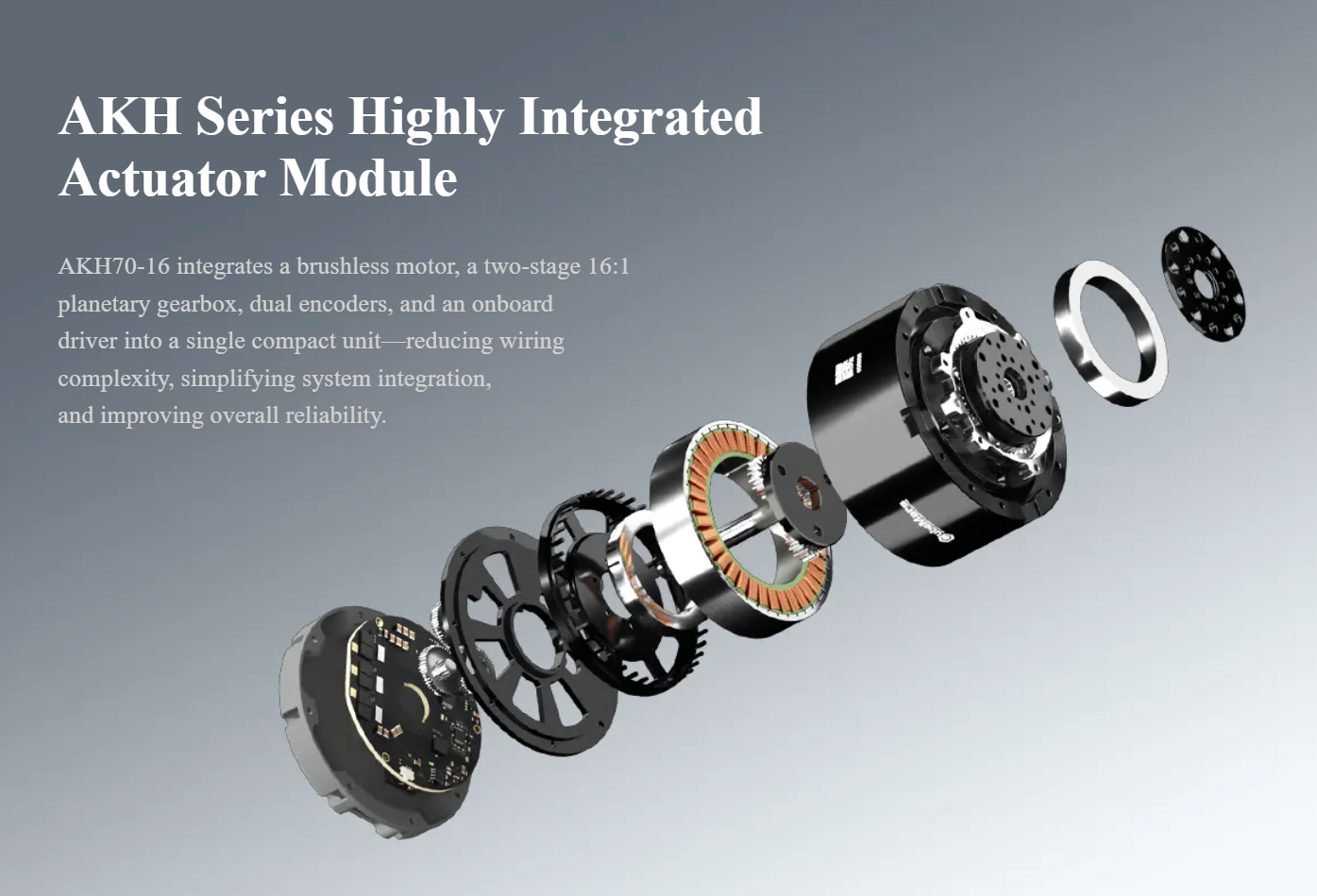

The CubeMars AKH70-48 V1.0 KV41 hollow shaft actuator integrates a brushless motor, three-stage 48:1 planetary gearbox, dual 21-bit encoders, and driver. Delivers 222 Nm peak at 159 Nm/kg with 7mm hollow bore and dual CAN daisy-chain support.
| Spec | Value |
|---|---|
| Peak Torque | 222 Nm |
| Rated Torque | 74 Nm |
| No-load Speed | 35 rpm |
| Weight | 1396 g |
| Dimensions | Ф90 × 81.5mm |

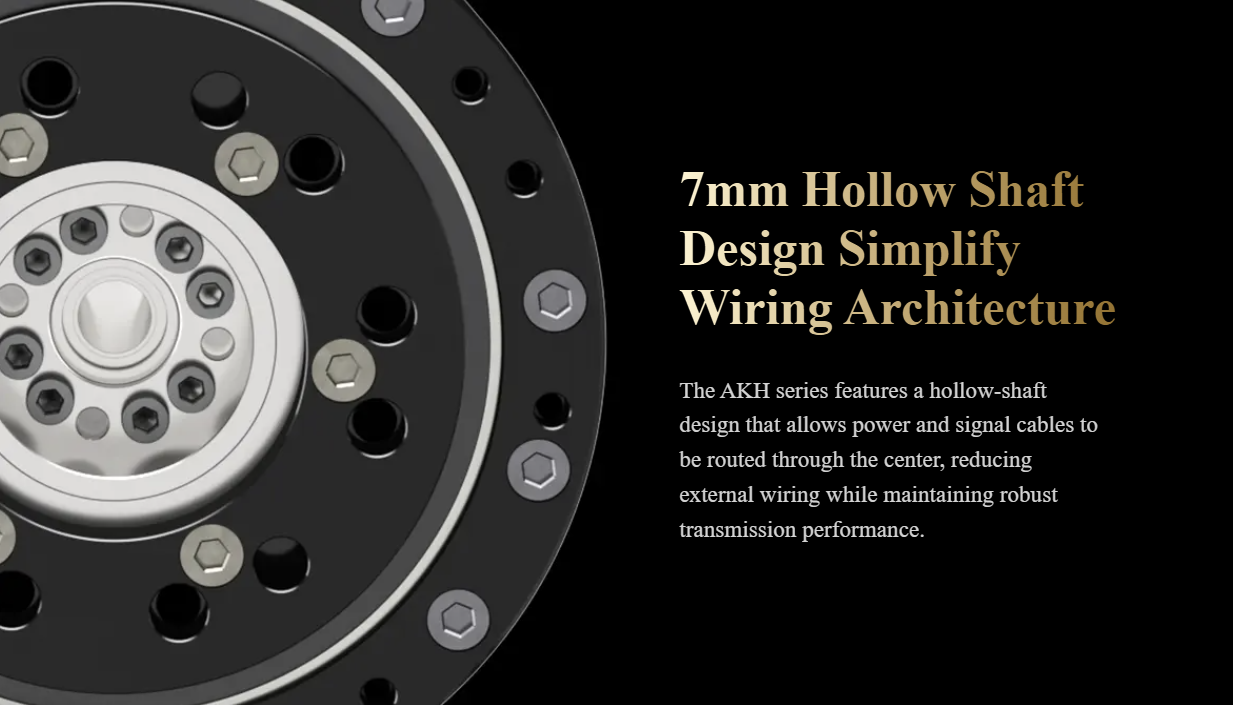

| Hollow Bore | 7mm |
| Gear Ratio | 48:1 (3-stage) |
| KV | 41 rpm/V |
| Torque Density | 159 Nm/kg |
| Encoder | Dual 21-bit Magnetic |

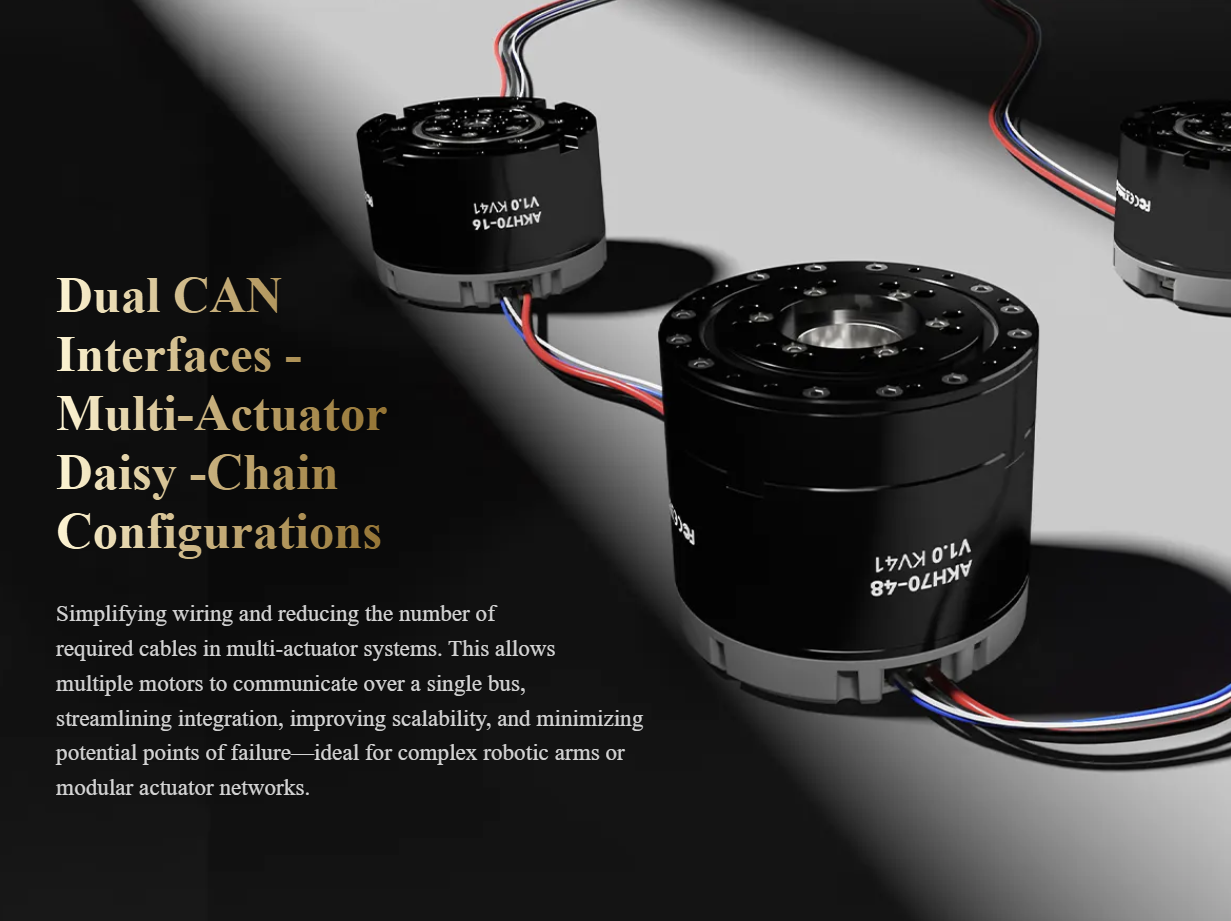

| Communication | Dual CAN |
