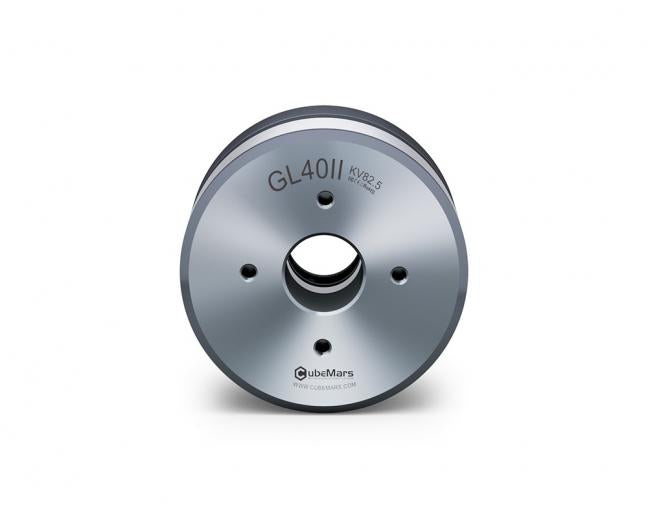

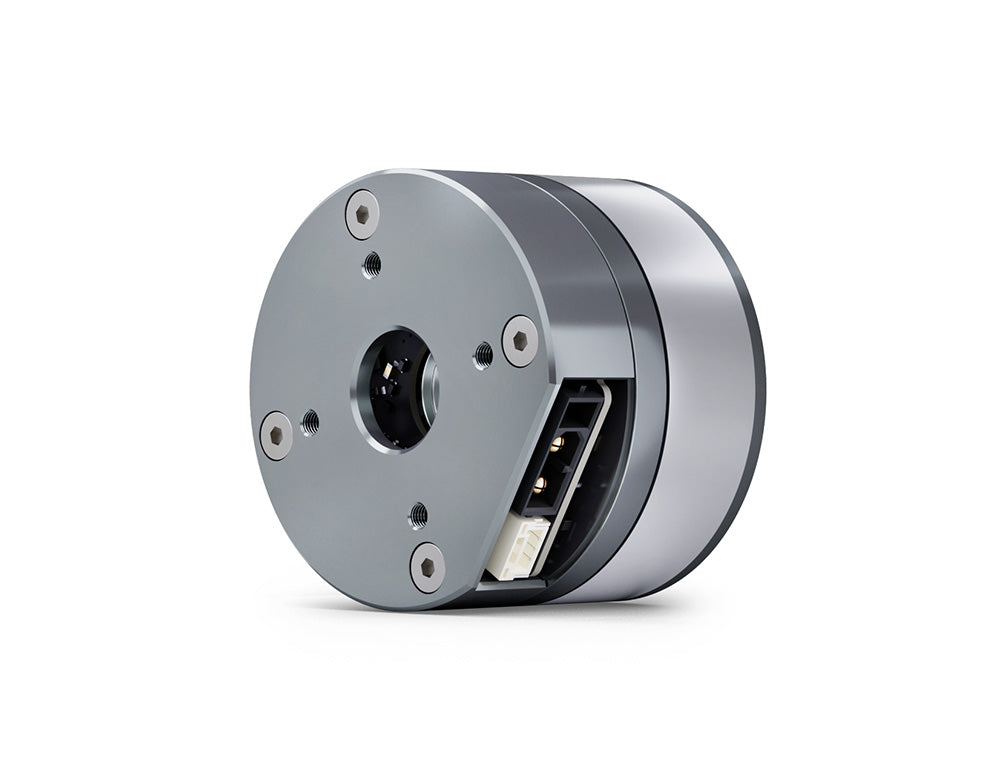

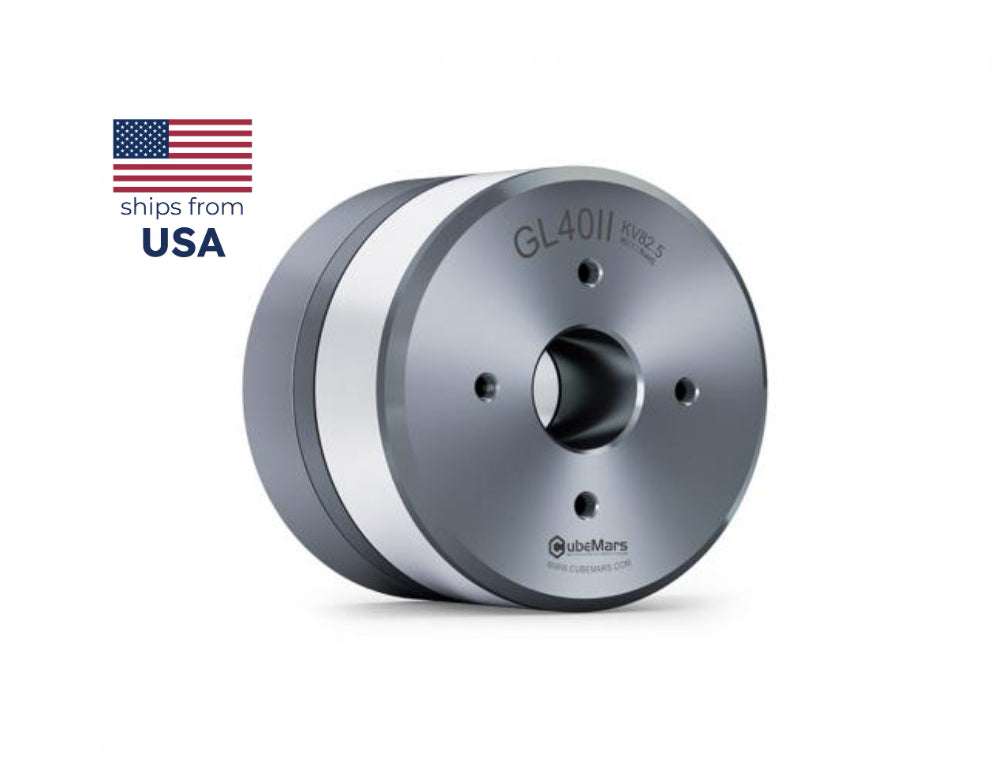

CubeMars GL40II KV82.5
$177.00
Sale price
$177.00
Regular price
Skip to product information
CubeMars GL40II KV82.5
$177.00
Sale price
$177.00
Regular price
The CubeMars GL40II KV82.5 gimbal motor integrates a brushless motor and driver with a Ф12.5mm hollow shaft. Features 30% improved cogging torque over GL40, CAN and PWM protocols, MIT mode, velocity-position and velocity control modes. IP45 rated.
| Spec | Value |
|---|---|
| Peak Torque | 0.68 Nm |
| Rated Torque | 0.25 Nm |
| Rated Speed | 697 rpm |
| Weight | 125 g |
| Hollow Shaft | Ф12.5mm |
| KV | 82.5 rpm/V |
| Communication | CAN + PWM |
| Protection | IP45 |
| Torque Density | 60.7 Nm/kg |
